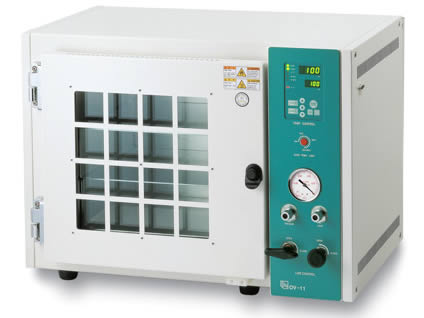

LAB COMPANION MODEL OV-12 65L VACUUM OVEN

$3,188.98

Shipping Weight: 227lbs

Manufactured by: Jeio Tech

This product was added to our catalog on Monday 02 October, 2017.

Out of stock

SKU: AAH13126U Category:

Description

Optimal vacuum oven with wide temperature range for various test applications. “Best Product for Reliable Results” by Jeio Tech.
Operating features

  • 5℃ above room temperature to 250℃
  • Vacuum range: 0 to 0.1MPa, analog gauge
  • Microprocess PID control/ Auto-tuning/ Calibration
  • Digital timer: 1 min to 99 hr 59 min, delayed ON/ OFF
  • Over-temperature limiter/ Door opening alarm
  • 3 different temperature values memorable without auto-tuning
  • Digital LED display (1℃ resolution) with touch-sensitive keypads
  • RS-232 interface available

Constructional features

  • Separately equipped vacuum and vent ports the narrow vent line to control vacuum rate and inert atmospheres slowly, the wider vacuum line to produce a vacuum quickly
  • Tight seal at a vacuum level by equipped door gasket and a push-button latch
  • Block type heaters heat the chamber evenly and good transmission by anodized aluminum plate shelve
  • Heat-tempered full view window permits continuous monitoring
  • Excellent space efficiency and user-friendly all-in-one type operating panel
  • Available very persistent Viton (Fluorine rubber) door gasket upon request (optional)
