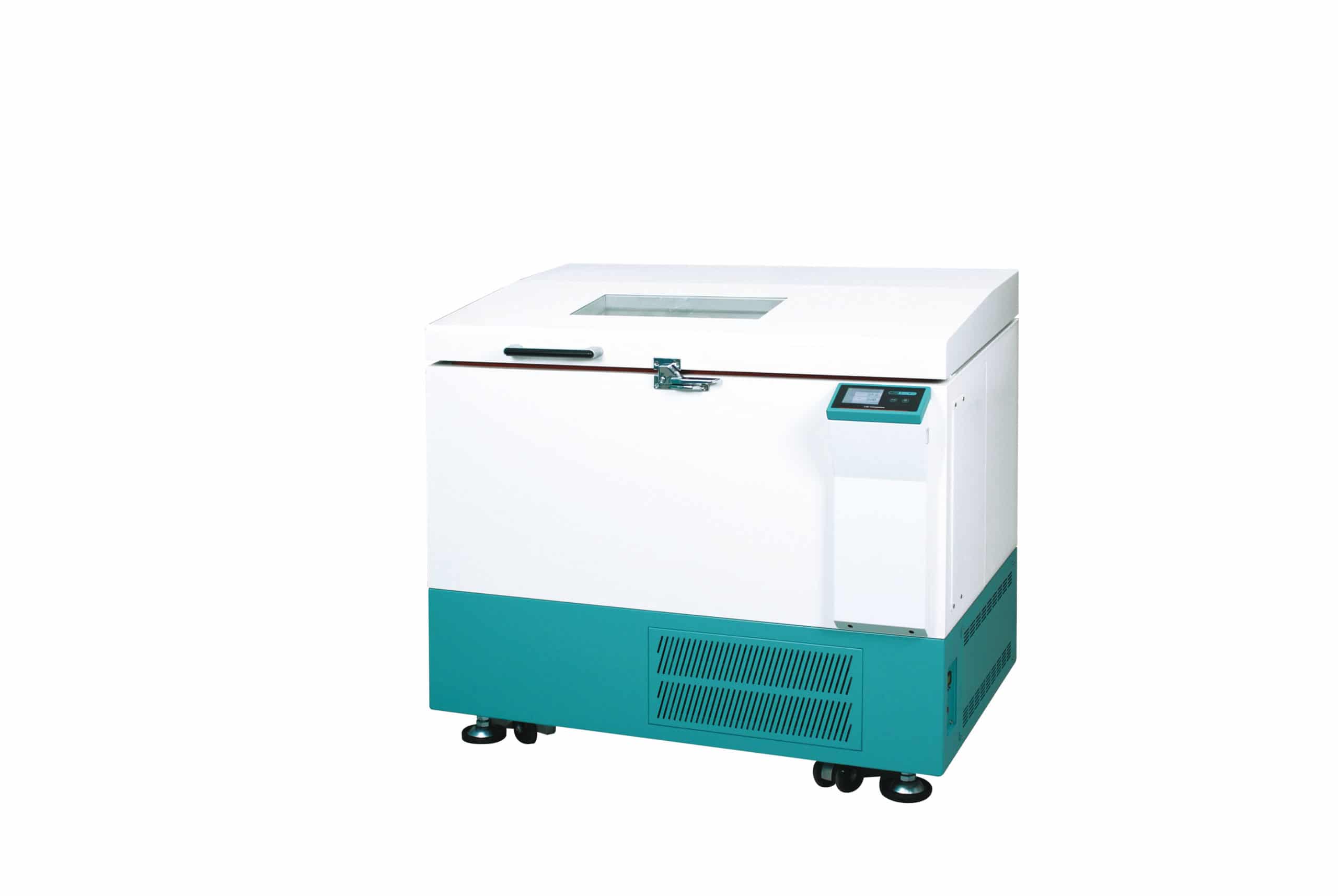

LAB COMPANION MODEL ISF-7100R 270L HEAVY WORKLOAD INCUBATING SHAKER

$10,235.39

Shipping Weight: 633lbs

Manufactured by: Jeio Tech

This product was added to our catalog on Friday 01 March, 2019.

1 in stock

SKU: AAH23575U Category:

Description

Performance

  • Temperature range:
    – Ambient +5°C to 80 °C for ISF-7100 / 7200
    – Ambient -20°C (Min. 4) to 80°C for ISF-7100R / 7200R
  • Competitive high shaking speed up to 500 rpm.
    – Speed range: 30 to 500 rpm.
  • Orbital shaking motion in various diameter.
    – 25.4mm for ISF-7100/R
    – 50.8mm for ISF-7200/R
  • Microprocessor PID control.
  • Three point temperature calibration / Automatic tuning.
  • Wide speed range even with heavy workload.
    – Ideal DD(Direct Drive) brushless motor and triple cam system support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation.
  • Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
    – Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock.
  • Pleasant test environment by the smooth acceleration and deceleration control.
    – Smooth start and smooth stop function prevents chemical spills from flasks or test tubes.
  • High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after door open.
  • Air-tight silicone door seal with lockable door for safe storage of samples.

Convenience

  • Intuitive touch screen LCD controller with easy icons and logical menus.
  • Easy-set digital timer for shaking operation. (1 min. to 999 hr. 59 min.)
  • Easy sample monitoring and convenient sample loading.
    – Clear observation of samples without affecting inner chamber’s environment thanks to the transparent top viewing window with bright LED lamps.
    – The lid is inclined gently towards the front for easy observation of samples in the chamber.
    – Gas spring lid supports providing smooth motion, soft opening and closing.
  • Repetitive task can be easily performed as the platform stops where it starts.
    – Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
  • Corrosion resistance stainless steel interior.
  • Easy-access drain system with a quick disconnect valve offers great convenience to clean up of spills.
  • Built-in RS-232 port and USB port for external control and data collection.
  • Sturdy foot caster, beneficial for easy mobility during installation or relocation.
  • Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)

Safety

  • Automatic run after power interruption.
  • Temperature and shaking speed deviation alarm.
  • Over-current protection.
  • Triple independent temperature monitor system.
    – Temperature deviation alarm (High/Low)
    – Electronic temperature limiter (High/Low)
    – Mechanical over-temperature limiter (High)
  • Environment-friendly CFC-free refrigerant. (for ISF-7100R / 7200R)
  • Audible and visible open door alarms.
